High voltage dry type series reactor

RR series high-voltage dry series reactors are suitable for 6～35kV power systems. They are connected in series with parallel capacitors to form an LC circuit to suppress the distortion of the grid voltage waveform, control the harmonic components flowing through the capacitors and limit the inrush current of the capacitor combination.

·Designed with dedicated software

· Strong ability to withstand short-circuit current

· Optimize the selection of core magnetic flux density and wire current density, with low noise, low loss, long life, and low temperature rise

· The iron core reactor coil is cast with epoxy resin

· Rated frequency: 50Hz

· Number of phases: single-phase or three-phase

· System rated voltage: 6, 10, 35kV

· Rated reactance rate

0.1%, 0.3%, 0.5%, 1%, mainly used to limit the closing inrush current

4.5%, 5%, 6%, used to limit the closing inrush current and suppress the 5th and above harmonics

12%, 13%, used to limit the closing inrush current and suppress the 3rd and above harmonics

· Installation location: indoor and outdoor

· Ambient temperature: -40℃～＋40℃

· Relative humidity: the relative humidity does not exceed 90%

· Altitude: ≤2000m

· Maximum wind speed: 35m/s

· Seismic requirements: able to withstand the action of an earthquake intensity of 8 degrees without being damaged

· Anti-pollution ability: the creepage distance of the external insulation is not less than 25mm/kV (relative to the highest working voltage of the system)

High-voltage dry-type iron core series reactor

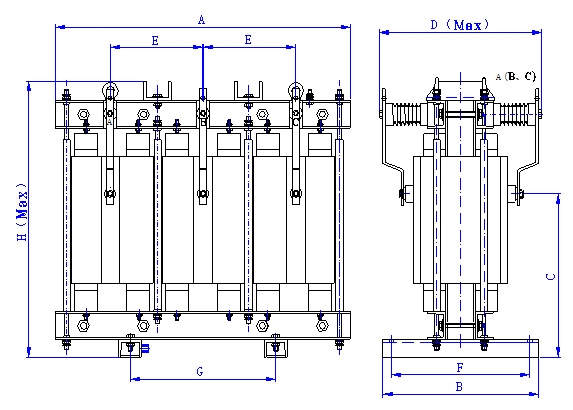

model	Parallel capacitor bank capacity kvar	Voltage of parallel capacitor bank kV	System voltage kV	Rated reactance rate%	Rated reactance value Ω	Rated current A	Rated capacity kvar	Loss W(95℃)	Overall dimension mm (see attached picture)
model	Parallel capacitor bank capacity kvar	Voltage of parallel capacitor bank kV	System voltage kV	Rated reactance rate%	Rated reactance value Ω	Rated current A	Rated capacity kvar	Loss W(95℃)	A	B	C	D	E	H	F	G
RRDE-6-4.5/6	75	6.6	6	6	34.85	6.56	4.5	101	650	310	320	200	175	560	250	215
RRDE-6-6.0/6	100	6.6	6	6	26.14	8.75	6	119	650	310	320	200	175	560	250	215
RRDE-6-9.0/6	150	6.6	6	6	17.42	13.12	9	152	750	310	450	230	180	610	250	235
RRDE-6-12/6	200	6.6	6	6	13.07	17.50	12	185	750	310	450	230	190	690	250	275
RRDE-6-18/6	300	6.6	6	6	8.71	26.24	18	219	750	310	450	230	190	690	250	275
RRDE-6-24/6	400	6.6	6	6	6.53	34.99	twenty four	281	840	400	500	265	200	870	350	400
RRDE-6-27/6	450	6.6	6	6	5.81	39.37	27	288	840	400	500	265	200	870	350	400
RRDE-6-30/6	500	6.6	6	6	5.23	43.74	30	300	840	400	500	265	200	870	350	400
RRDE-6-36/6	600	6.6	6	6	4.36	52.49	36	325	840	400	500	265	200	870	350	400
RRDE-6-45/6	750	6.6	6	6	3.48	65.61	45	419	910	400	500	290	210	950	350	420
RRDE-6-48/6	800	6.6	6	6	3.27	69.98	48	435	910	400	500	290	210	950	350	420
RRDE-6-60/6	1000	6.6	6	6	2.61	87.48	60	448	910	400	500	290	215	990	350	420
RRDE-6-90/6	1500	6.6	6	6	1.74	131.22	90	584	1020	500	500	320	225	1060	450	450
RRDE-6-108/6	1800	6.6	6	6	1.45	157.46	108	556	1020	500	500	320	225	1060	450	450
RRDE-11-4.5/6	75	11	10	6	96.80	3.94	4.5	101	650	310	320	200	175	560	250	215
RRDE-11-6.0/6	100	11	10	6	72.60	5.25	6	119	650	310	320	200	175	560	250	215
RRDE-11-9.0/6	150	11	10	6	48.40	7.87	9	152	750	310	450	230	180	610	250	235
RRDE-11-12/6	200	11	10	6	36.30	10.50	12	185	750	310	450	230	190	690	250	275
RRDE-11-18/6	300	11	10	6	24.20	15.75	18	219	750	310	450	230	190	690	250	275
RRDE-11-24/6	400	11	10	6	18.15	21.00	twenty four	281	840	400	500	265	200	870	350	400
RRDE-11-27/6	450	11	10	6	16.13	23.62	27	288	840	400	500	265	200	870	350	400
RRDE-11-30/6	500	11	10	6	14.52	26.24	30	300	840	400	500	265	200	870	350	400
RRDE-11-36/6	600	11	10	6	12.10	31.49	36	325	840	400	500	265	200	870	350	400
RRDE-11-45/6	750	11	10	6	9.68	39.37	45	419	910	400	500	290	210	950	350	420
RRDE-11-48/6	800	11	10	6	9.08	41.99	48	435	910	400	500	290	210	950	350	420
RRDE-11-60/6	1000	11	10	6	7.26	52.49	60	448	910	400	500	290	215	990	350	420
RRDE-11-90/6	1500	11	10	6	4.84	78.73	90	584	1020	500	500	320	225	1060	450	450
RRDE-11-108/6	1800	11	10	6	4.03	94.48	108	556	1020	500	500	320	225	1060	450	450

Note: Any product is constantly improving, and subject to change without notice. For more detailed information and products with unlisted voltages, models and specifications, please contact the supplier.
