High voltage shunt power capacitor

High-voltage parallel power capacitor is a simple, economical and reliable reactive power compensation electrical component, which can improve the power factor of the power system, reduce voltage drop, reduce loss, and improve power transmission capacity.

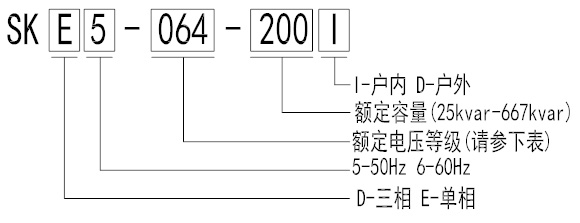

Note: Voltage grade selection comparison table (please contact our company for data not listed)

Voltage level ( kV )	6.6 √3	7.2 √3	6.6	7.2	11 √3	12 √3	11	11.7	12
Corresponding selection number	038	042	066	072	064	069	110	117	120

Ø Low dielectric loss;

Ø High explosion-proof specifications of the box shell

Ø Insulating oil meets environmental protection requirements

Ø The capacitance value changes very little with temperature;

Ø Can withstand fault current below 10kA;

Ø Built-in discharge resistor, when it is cut off from the power supply, the remaining voltage on the capacitor can be reduced from √2 UN to less than 50V within 5 minutes ;

· Rated frequency: 50Hz or 60Hz;

· Average loss: no more than 0.2W/kvar;

· Full film dielectric: polypropylene film;

· Insulating oil: does not contain chlorinated biphenyls, is environmentally friendly and non-toxic;

· Allow long-term operation under 1.1 times rated voltage;

· Allow continuous operation under steady-state overcurrent of 1.3 times the rated current;

· The capacitance deviation does not exceed -3%～+3% of the rated value;

· Built-in discharging resistor, after power off, the remaining voltage on the capacitor can be reduced from √2 UN to below 50V within 5 minutes .

· Executive standard: IEC60871: 1997 "Shunt Capacitor for AC Power System with Nominal Voltage Above 1kV"

IEC61642: 1997 "Application of Filters and Shunt Capacitors in Industrial AC Networks Affected by Harmonics"

Operating environment

· The altitude normally does not exceed 1000m

· Air temperature range: (-40～+50)℃;

· No corrosive gas, steam, conductivity or explosive dust; no violent vibration;

Three-phase parallel power capacitor

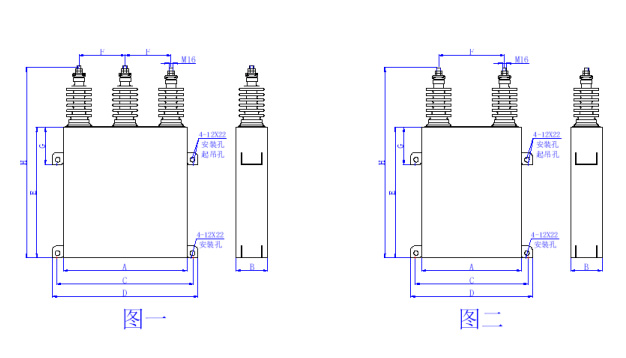

model	Rated voltage (kV)	Rated capacity (kvar)	Dimensions and installation dimensions (mm)								Weight (kg)	Drawing number
model	Rated voltage (kV)	Rated capacity (kvar)	A	B	C	D	E	F	G	H	Weight (kg)	Drawing number
SKD5-066-100I	6.6	100	420	120	470	504	350	150	140	562	28	Figure one
SKD5-066-150I	6.6	150	420	120	470	504	435	150	200	647	34
SKD5-066-200I	6.6	200	620	140	670	704	365	250	140	632	47
SKD5-066-250I	6.6	250	620	160	670	704	365	250	140	632	52
SKD5-066-300I	6.6	300	620	155	670	704	435	250	200	702	60
SKD5-110-100I	11	100	460	110	510	544	365	175	140	577	30
SKD5-110-150I	11	150	460	140	510	544	365	175	140	577	35
SKD5-110-200I	11	200	620	140	670	704	365	250	140	632	47
SKD5-110-250I	11	250	620	160	670	704	365	250	140	632	52
SKD5-110-300I	11	300	620	155	670	704	435	250	200	702	60	Figure one
SKD5-110-350I	11	350	620	180	670	704	435	250	200	702	69
SKD5-110-450I	11	450	620	190	670	704	595	250	200	807	98
SKD5-120-100I	12	100	460	110	510	544	365	175	140	577	30
SKD5-120-150I	12	150	460	140	510	544	365	175	140	577	36
SKD5-120-200I	12	200	620	135	670	704	365	250	140	632	46
SKD5-120-250I	12	250	620	160	670	704	435	250	140	632	52
SKD5-120-300I	12	300	620	155	670	704	435	250	200	702	60

Note: All products are constantly improving, and subject to change without notice. For more detailed information and products with unlisted voltages, models and specifications, please contact our company.

Single-phase parallel power capacitor

model	Rated voltage (kV)	Rated capacity (kvar)	Dimensions and installation dimensions (mm)								Weight (kg)	Drawing number
model	Rated voltage (kV)	Rated capacity (kvar)	A	B	C	D	E	F	G	H	Weight (kg)	Drawing number
SKE5-038-050I	6.6 √3	50	380	120	430	464	210	250	130	422	16	Figure II
SKE5-064-050I	11 √3	50	380	120	430	464	210	250	130	422	16
SKE5-038-100I	6.6 √3	100	380	120	430	464	340	250	130	552	twenty four
SKE5-042-100I	7.2 √3	100	380	120	430	464	340	250	130	552	twenty four
SKE5-064-100I	11 √3	100	380	120	430	464	340	250	130	552	twenty four
SKE5-069-100I	12 √3	100	380	120	430	464	340	250	130	552	twenty four
SKE5-110-100I	11	100	380	120	430	464	340	250	130	552	twenty four
SKE5-120-100I	12	100	380	120	430	464	365	250	140	577	25
SKE5-038-150I	6.6 √3	150	380	130	430	464	435	250	200	647	32
SKE5-064-150I	11 √3	150	380	140	430	464	400	250	140	612	31
SKE5-069-150I	12 √3	150	380	130	430	464	435	250	200	647	32
SKE5-038-200I	6.6 √3	200	380	140	430	464	500	250	200	716	38
SKE5-064-200I	11 √3	200	380	140	430	464	500	250	200	712	38
SKE5-069-200I	12 √3	200	380	140	430	464	510	250	200	722	39
SKE5-038-250I	6.6 √3	250	380	180	430	464	480	250	200	696	46
SKE5-064-250I	11 √3	250	380	180	430	464	480	250	200	692	45
SKE5-038-300I	6.6 √3	300	380	180	430	464	560	250	200	776	54
SKE5-064-300I	11 √3	300	380	180	430	464	570	250	200	786	53
SKE5-069-300I	12 √3	300	380	180	430	464	570	250	200	786	54
SKE5-038-334I	6.6 √3	334	380	180	430	464	620	250	200	836	58
SKE5-042-334I	7.2 √3	334	380	200	430	464	595	250	200	811	61
SKE5-064-334I	11 √3	334	380	180	430	464	620	250	200	836	57
SKE5-069-334I	12 √3	334	380	180	430	464	620	250	200	836	56
SKE5-038-400I	6.6 √3	400	380	180	430	464	730	250	200	946	67
SKE5-042-400I	7.2 √3	400	380	180	430	464	720	250	200	936	67
SKE5-064-400I	11 √3	400	380	180	430	464	720	250	200	936	67
SKE5-069-400I	12 √3	400	380	180	430	464	730	250	200	946	68
SKE5-064-500I	11 √3	500	380	196	430	464	840	250	200	1056	87
