MLV series low voltage reactive power compensation module

MLV series low-voltage reactive power compensation module is a reactive power compensation module designed for low-voltage switchgear in current low-voltage power distribution system applications. The HZM series components, thyristor and fuse group are assembled into a compensation circuit, which is easy to expand, easy to install, reasonable in wiring and compact in structure. It is suitable for places requiring reactive power compensation in machinery manufacturing, metallurgy, mining, coal, chemical, tap water, building materials and other industries.

●Single group of modules can be flexibly equipped according to system requirements

●Simple interface

●Expandable

●Convenient installation and maintenance

System voltage: 280～690VAC

Minimum response time: T-type switching ≤15ms

Power loss: ≤4W/kvar

1. Reference standards: IEC60831-1 (1996), GB50054-95, GB50227-1995, JB7113-1993;

2. Altitude: ≤2000m; (Special requirements need to be customized)

3. Ambient temperature: -40℃～+50℃;

4. Relative air humidity: ≤95%;

5. Maximum operating voltage: <1.1UN (long-term)

6. Maximum load current: <1.3IN;

7. The installation position should be free from severe vibration, and the inclination angle should not be greater than 5°;

8. The surrounding medium has no explosive and flammable hazardous materials, no harmful gases that corrode metals and damage insulation, and no conductive dust.

System voltage 400V

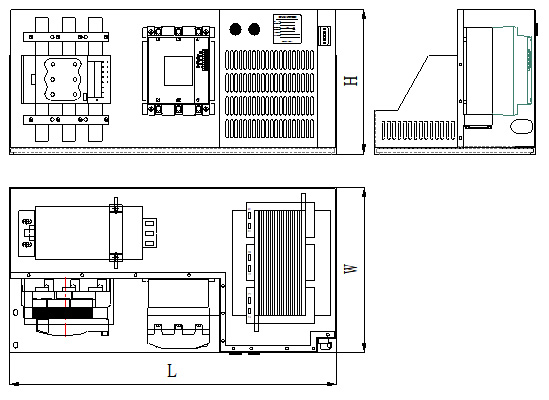

Product number	Output capacity	Capacitor rated voltage	Capacitor rated capacity	Reactance rate	Dimensions L×W×H
Product number	kvar	(V)	(Kvar)	(%)	(Mm)
MLV0.4-10T-7/S-1	10	480	14	7	735×360×315
MLV0.4-15T-7/S-1	15	480	20	7
MLV0.4-20T-7/S-1	20	480	26	7
MLV0.4-30T-7/S-1	30	480	20×2	7
MLV0.4-40T-7/S-1	40	480	26×2	7
MLV0.4-50T-7/S-1	50	480	33×2	7
MLV0.4-10T-14/S-1	10	525	15	14
MLV0.4-15T-14/S-1	15	525	twenty two	14
MLV0.4-20T-14/S-1	20	525	30	14
MLV0.4-30T-14/S-1	30	525	22×2	14
MLV0.4-40T-14/S-1	40	525	30×2	14
MLV0.4-50T-14/S-1	50	525	37×2	14
MLV0.4-15T-7/S-2	15	480	20	7	492×220×456
MLV0.4-20T-7/S-2	20	480	26	7
MLV0.4-25T-7/S-2	25	480	33	7
MLV0.4-30T-7/S-2	30	480	40	7
