●Adopt advanced IGBT power module, the system is more stable and reliable;

●Reasonable structural layout to ensure power circuit design and good heat dissipation effect;

●Using DSP+FPGA control platform; precise, safe and stable control;

●Equipped with a 4.3-inch HMI touch screen, providing a friendly UI man-machine interface for operation;

●Continuous reactive power compensation and accurate compensation to prevent under-compensation and over-compensation;

●Strong overload capability, continuous operation with 1.1 times overload, and three-phase unbalance compensation capability;

●Suitable for cabinet installation and fixation;

●Multiple units can be used in parallel, centralized panel monitoring;

●Rated voltage: 0.4kV

●Number of phases: three-phase three-wire, three-phase four-wire

●Capacity: 20~100kvar

●Grid frequency: 45Hz～62Hz

●The efficiency of the whole machine: ≥97.6%

●Fast response time <50us, full response time: <10ms

●Module power consumption<2kW

●CT transformation ratio range: 150:5~6000:5

●Communication interface: RS485

●Communication protocol: Modbus protocol

●Use place: indoor, no dust, no corrosion, no flammable gas

●Altitude: lower than 1000 meters, derating use when higher than 1000 meters

●Working temperature: -10ºC ~ +40ºC

●Working humidity: <95%

●Protection level: IP20

●Noise: 65db (1m)

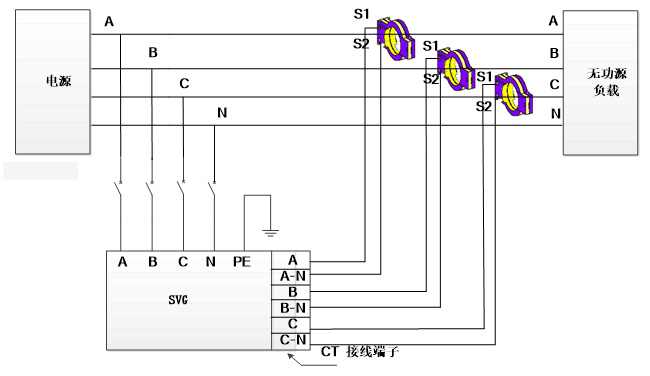

HVGM power modules need to wire and install three-phase power cables, N cables, PE cables, and external CT cables. The overall block diagram is shown in the figure below.
