MVC series high voltage vacuum contactor

The vacuum contactor is an electrical component that opens/closes the main contact part by electromagnetic force and performs circuit switching operations in a vacuum. Due to its superior performance, it is more and more widely used. Hz medium voltage vacuum contactors are also widely used in AC systems below 15kV where multiple opening and closing operation cycles are required. They are especially suitable for users who frequently operate, such as: squirrel cage winding induction motors, wound rotors and synchronous motors. Start at full or reduced voltage; turn off the power supply and capacitor. For heavy load applications and harsh environmental conditions in many industries such as mining, pulp and paper, petrochemical, and automotive, the Hz medium pressure vacuum contactor is especially recommended.

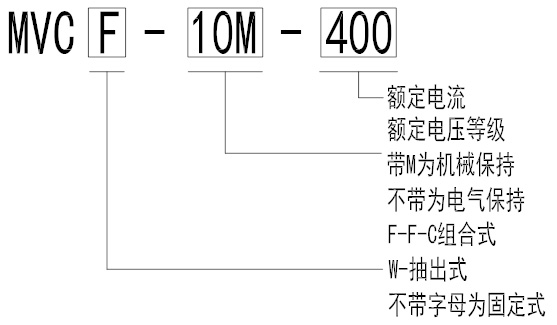

Rated voltage	Rated current	Fixed		Fixed support with fuse		Withdrawable
Rated voltage	Rated current	Electrical self-holding	Mechanical self-retention	Electrical self-holding	Mechanical self-retention	Electrical self-holding	Mechanical self-retention
7.2kV	200A	MVC-7-200	MVC-7M-200	MVCF-7-200	MVCF-7M-200	MVCW-7-200	MVCW-7M-200
	400A	MVC-7-400	MVC-7M-400	MVCF-7-400	MVCF-7M-400	MVCW-7-400	MVCW-7M-400
	630A	MVC-7-600	MVC-7M-600	MVCF-7-600	MVCF-7M-600	MVCW-7-600	MVCW-7M-600
12kV	200A	MVC-10-200	MVC-10M-200	MVCF-10-200	MVCF-10M-200	MVCW-10-200	MVCW-10M-200
	400A	MVC-10-400	MVC-10M-400	MVCF-10-400	MVCF-10M-400	MVCW-10-400	MVCW-10M-400
	630A	MVC-10-600	MVC-10M-600	MVCF-10-600	MVCF-10M-600	MVCW-10-600	MVCW-10M-600

MVC vacuum contactors take electrical hold as the standard model, and can provide three types of fixed, FC combined and withdrawable rated voltages of 7.2kV (MVC-7) and 12kV (MVC-10).

Generally, FC combined and withdrawable vacuum contactors contain a fuse holder and a fuse, and the electrical performance of the fuse meets the IEC 60282-1 (2002) standard.

· Maintenance-free

· Reliable vacuum technology

· Frequent operation

· Long electrical and mechanical life

· Very low operating overvoltage

· Small interception value

· Compact structure

1. MVC-7 (M) technical parameters

Medium voltage part				Low pressure part
project name		Vacuum contactor model		project name	Vacuum contactor model
		MVC-7 (M) -400 (200)	MVC-7 (M) -600		MVC-7(M)-400(200)	MVC-7 (M) -600
Rated voltage Ue		7.2kV	7.2kV	Rated operating voltage Ur	110V/220V(AC, DC)
Rated current Ie		400A (200A)	630A	Rated operating voltage range	0.85Ur～1.1Ur
Rated frequency fe		50/60Hz	50/60Hz	Closing coil pull-in current	≤DC 6A/DC 3.5A
4s rated thermal stability current		4kA	6.3kA	Tripping current of opening coil (Mechanical hold)	DC2.5A/DC1.5A
Rated peak withstand current		10kA	16 kA
Rated short circuit breaking current		4kA	5kA	Holding coil holding current (Electrical hold)	DC0.45A/DC0.22A
Rated short-circuit making current		10kA	12.5kA
Fit the capacitive current of the capacitor		230A(115A)	230A	Closing time (AC/DC operation)	≤90ms
Operating frequency (mechanical hold)		300 times/hour	300 times/hour
Operating frequency (electrical hold)		1800 times/hour	1800 times/hour	Inherent opening time (AC/DC operation)	≤30ms
Contactor Mechanical life	Mechanical retention	30×104 times	30×104 times
	Electrical hold	100×104 times	100×104 times	1min power frequency withstand voltage	2kV
Contactor electrical life		AC-3: 25×104 times	AC-3: 25×104 times	Contactor auxiliary contacts
		AC-4: 10×104 times	AC-4: 10×104 times	Quantity	4 open 4 closed
Rated lightning impulse withstand voltage		60kV	60kV	Conventional heating current	6A (DC/AC220V)
1min power frequency withstand voltage		32kV	32kV	Mechanical life	5×106
Three-phase closing synchronization		≤2.0ms	≤2.0ms	Electrical life	2×106
Contact bounce time		≤5.0ms	≤5.0ms	Rated working current	DC11: 220VDC, 0.4A
Conductive loop resistance of each phase (20℃)		≤150μΩ	≤150μΩ		AC11: 220VAC, 4A

2. MVC-10 (M) technical parameters

Medium voltage part				Low pressure part
project name		Vacuum contactor model		project name	Vacuum contactor model
		MVC-10 (M) -400 (200)	MVC-10 (M) -600		MVC-10(M)-400(200)	MVC-10 (M) -600
Rated voltage Ue		12kV	12kV	Rated operating voltage Ur	110V/220V(AC, DC)
Rated current Ie		400A (200A)	630A	Rated operating voltage range	0.85Ur～1.1Ur
Rated frequency fe		50/60Hz	50/60Hz	Closing coil pull-in current	≤DC 6A /DC 3.5A	≤DC 14A /DC 7A
4s rated thermal stability current		4kA	6.3kA	Tripping current of opening coil (Mechanical hold)	DC2.5A/DC1.5A
Rated peak withstand current		10kA	16kA
Rated short circuit breaking current		4kA	5kA	Holding coil holding current (Electrical hold)	DC0.45A /DC0.22A	DC0.8A /DC0.4A
Rated short-circuit making current		10kA	12.5kA
Fit the capacitive current of the capacitor		230A(115A)	230A	Closing time (AC/DC operation)	≤90ms
Operating frequency (mechanical hold)		300 times/hour	300 times/hour
Operating frequency (electrical hold)		1800 times/hour	1800 times/hour	Inherent opening time (AC/DC operation)	≤30ms
Mechanical life of contactor	Mechanical retention	30×104 times	30×104 times
	Electrical hold	100×104 times	100×104 times	1min power frequency withstand voltage	2kV
Contactor electrical life		AC-3: 25×104 times	AC-3: 25×104 times	Contactor auxiliary contacts
		AC-4: 10×104 times	AC-4: 10×104 times	Quantity	4 open 4 closed
Rated lightning impulse withstand voltage		75kV	75kV	Conventional heating current	6A (DC/AC220V)
1min power frequency withstand voltage		42kV	42kV	Mechanical life	5×106
Three-phase closing synchronization		≤2.0ms	≤2.0ms	Electrical life	2×106
Contact bounce time		≤5.0ms	≤5.0ms	Rated working current	DC11: 220VDC, 0.4A
Conductive loop resistance of each phase (20℃)		≤150μΩ	≤150μΩ		AC11: 220VAC, 4A

3. MVCF-7 (M) technical parameters

Medium voltage part				Low pressure part
project name		Vacuum contactor model		project name	Vacuum contactor model
		MVCF-7(M)-400(200)	MVCF-7 (M) -600		MVCF-7(M)-400(200)	MVCF-7 (M) -600
Rated voltage Ue		7.2kV	7.2kV	Rated operating voltage Ur	110V/220V(AC, DC)
Rated current Ie		400A (200A)	630A	Rated operating voltage range	0.85Ur～1.1Ur
Fuse rated current		See the table below for details		Closing coil pull-in current	≤DC 6A/DC 3.5A
Rated frequency fe		50/60Hz	50/60Hz	Tripping current of opening coil (Mechanical hold)	DC2.5A/DC1.5A
4s rated thermal stability current		4kA	6.3kA	Holding coil holding current (Electrical hold)	DC0.45A/DC0.22A
Rated short circuit breaking current		40kA	40kA
Rated short-circuit making current		130kA	130kA	Closing time (AC/DC operation)	≤90ms
Maximum transfer current		3150A	3150A
Fit the capacitive current of the capacitor		230A(115A)	230A	Inherent opening time (AC/DC operation)	≤30ms
Operating frequency (mechanical hold)		300 times/hour	300 times/hour
Operating frequency (electrical hold)		1800 times/hour	1800 times/hour	1min power frequency withstand voltage	2kV
Contactor Mechanical life	Mechanical retention	30×104 times	30×104 times	Contactor auxiliary contacts
	Electrical hold	100×104 times	100×104 times	Quantity	4 open 4 closed
Contactor electrical life		AC-3: 25×104 times	AC-3: 25×104 times	Conventional heating current	6A (DC/AC220V)
		AC-4: 10×104 times	AC-4: 10×104 times	Mechanical life	5×106
Rated lightning impulse withstand voltage		60kV	60kV	Electrical life	2×106
1min power frequency withstand voltage		32kV	32kV	Rated working current	DC11: 220VDC, 0.4A
Three-phase closing synchronization		≤2.0ms	≤2.0ms		AC11: 220VAC, 4A
Contact bounce time		≤5.0ms	≤5.0ms	Fuse auxiliary contact
Conductive loop resistance of each phase (20℃)		≤150μΩ	≤150μΩ	Quantity	1 open and 1 closed

3.1 Fuse technical parameter table

model	Specification (A)	diameter (mm)	length (mm)	Protection object
FLM-7	25,40,63,80,100,125,160,200,250,315	77	493	Electric motor
FLM-7	355,400	88	493	Electric motor
FLT-7	3.15,8,10,16,25,40,63,80,100,125,160,200,250	77	493	transformer
FLC-7	16,20,25,40,50,63	77	493	Capacitor
FLC-7	71,80,90,100,125	88	493	Capacitor

4. MVCF-10 (M) technical parameters

Medium voltage part				Low pressure part
project name		Vacuum contactor model		project name	Vacuum contactor model
		MVCF-10(M)-400(200)	MVCF-10 (M) -600		MVCF-10(M)-400(200)		MVCF-10 (M) -600
Rated voltage Ue		12kV	12kV	Rated operating voltage Ur	110V/220V(AC, DC)
Rated current Ie		400A (200A)	630A	Rated operating voltage range	0.85Ur～1.1Ur
Fuse rated current		See the table below for details		Closing coil pull-in current	≤DC 6A /DC 3.5A	≤DC 14A /DC 7A
Rated frequency fe		50/60Hz	50/60Hz	Tripping current of opening coil (Mechanical hold)	DC2.5A/DC1.5A
4s rated thermal stability current		4kA	6.3kA	Holding coil holding current (Electrical hold)	DC0.45A /DC0.22A	DC0.8A /DC0.4A
Rated short circuit breaking current		40kA	40kA
Rated short-circuit making current		130kA	130kA	Closing time (AC/DC operation)	≤90ms
Maximum transfer current		3150A	3150A
Fit the capacitive current of the capacitor		230A(115A)	230A	Inherent opening time (AC/DC operation)	≤30ms
Operating frequency (mechanical hold)		300 times/hour	300 times/hour
Operating frequency (electrical hold)		1800 times/hour	1800 times/hour	1min power frequency withstand voltage	2kV
Contactor Mechanical life	Mechanical retention	30×104 times	30×104 times	Contactor auxiliary contacts
	Electrical hold	100×104 times	100×104 times	Quantity	4 open 4 closed
Contactor electrical life		AC-3: 25×104 times	AC-3: 25×104 times	Conventional heating current	6A (DC/AC220V)
		AC-4: 10×104 times	AC-4: 10×104 times	Mechanical life	5×106
Rated lightning impulse withstand voltage		75kV	75kV	Electrical life	2×106
1min power frequency withstand voltage		42kV	42kV	Rated working current	DC11: 220VDC, 0.4A
Three-phase closing synchronization		≤2.0ms	≤2.0ms		AC11: 220VAC, 4A
Contact bounce time		≤5.0ms	≤5.0ms	Fuse auxiliary contact
Conductive loop resistance of each phase (20℃)		≤150μΩ	≤150μΩ	Quantity	1 open and 1 closed

4.1 Technical parameter table of fuse

model	Specification (A)	diameter (mm)	length (mm)	Protection object
FLM-10	25,40,63,80,100,125,160	77	493	Electric motor
FLM-10	200,224,250,315	88	493	Electric motor
FLT-10	3.15,8,10,16,25,40,63,80,100,125,160,200,250	77	493	transformer
FLT-10	315	88	493	transformer
FLC-10	8,10,12.5,16,20,25,31.5,35.5,40,45,45,50,56,63	77	493	Capacitor
FLC-10	71,75,80,90,100,112,125	88	493	Capacitor

5. MVCW-7M technical parameters

Model specification		MVCW-7(M)-400	MVCW-7(M)-600
The main technical parameters
Rated voltage Ue		7.2 kV	7.2 kV
Rated current Ie		400 A	630 A
Fuse rated current		25A to 315A	25A to 315A
Rated frequency		50/60 Hz	50/60 Hz
4s rated thermal stability current		4 kA	6.3 kA
Rated short circuit breaking current		4 kA	5 kA
Rated peak withstand current		10 kA	16 kA
Expected breaking current of FC combination circuit (kA)		50 kA	50 kA
Expected closing current of FC combination circuit (kA)		130 kA	130 kA
Half-wave allowable current peak value (kA)		50 kA	50 kA
Fit the capacitive current of the capacitor		230A	350A
Operating frequency	Mechanical retention	300 times/hour	300 times/hour
	Electrical hold	1800 times/hour	1800 times/hour
Mechanical life	Mechanical retention	300,000 times	300,000 times
	Electrical hold	1000000 times	1000000 times
Electrical life	At rated current	1000000 times	1000000 times
Rated lightning impulse withstand voltage		60 kV	60 kV
High voltage part 1min power frequency withstand voltage		32 kV	32 kV
Low voltage part 1min power frequency withstand voltage		2 kV	2 kV
Three-phase closing synchronization		≤2.0ms	≤2.0ms
Contact bounce time		≤5.0ms	≤5.0ms
Closing time		≤40ms	≤40ms
Inherent opening time		≤30ms	≤30ms
Conductive loop resistance of each phase (20℃)		≤150μΩ	≤150μΩ
Weight (net weight)		95kg	105kg
Control loop parameters
Rated operating voltage		220V (AC, DC)	220V (AC, DC)
Closing coil pull-in current		＜3.5A (AC/DC)	＜3.5A (AC/DC)
Holding coil holding current (electrical holding)		0.45A	0.45A
Tripping current of opening coil (mechanical hold)		2.5A	2.5A

5.1 Fuse technical parameter table

model	Specification (A)	diameter (mm)	length (mm)	Protection object
FLM-7	25,40,63,80,100,125,160,200,250,315	77	493	Electric motor
FLM-7	355,400	88	493	Electric motor
FLT-7	3.15,8,10,16,25,40,63,80,100,125,160,200,250	77	493	transformer
FLC-7	16,20,25,40,50,63	77	493	Capacitor
FLC-7	71,80,90,100,125	88	493	Capacitor

6. Technical parameters of MVCW-10M

Model specification		MVCW-10(M)-400	MVCW-10(M)-600
The main technical parameters
Rated voltage Ue		12 kV	12 kV
Rated current Ie		400 A	630 A
Fuse rated current		25A to 315A	25A to 315A
Rated frequency		50/60 Hz	50/60 Hz
4s rated thermal stability current		4 kA	6.3 kA
Rated short circuit breaking current		4 kA	5 kA
Rated peak withstand current		10 kA	16 kA
Expected breaking current of FC combination circuit (kA)		50 kA	50 kA
Expected closing current of FC combination circuit (kA)		130 kA	130 kA
Half-wave allowable current peak value (kA)		50 kA	50 kA
Fit the capacitive current of the capacitor		230A	350A
Operating frequency	Mechanical retention	300 times/hour	300 times/hour
	Electrical hold	1800 times/hour	1800 times/hour
Mechanical life	Mechanical retention	300,000 times	300,000 times
	Electrical hold	1000000 times	1000000 times
Electrical life	At rated current	1000000 times	1000000 times
Rated lightning impulse withstand voltage		75 kV	75 kV
High voltage part 1min power frequency withstand voltage		42 kV	42 kV
Low voltage part 1min power frequency withstand voltage		2 kV	2 kV
Three-phase closing synchronization		≤2.0ms	≤2.0ms
Contact bounce time		≤5.0ms	≤5.0ms
Closing time		≤40ms	≤40ms
Inherent opening time		≤30ms	≤30ms
Conductive loop resistance of each phase (20℃)		≤150μΩ	≤150μΩ
Weight (net weight)		115kg	125kg
Control loop parameters
Rated operating voltage		220V (AC, DC)	220V (AC, DC)
Closing coil pull-in current		＜3.5A (AC/DC)	＜3.5A (AC/DC)
Holding coil holding current (electrical holding)		0.45A	0.45A
Tripping current of opening coil (mechanical hold)		2.5A	2.5A

6.1 Technical parameter table of fuse

model	Specification (A)	diameter (mm)	length (mm)	Protection object
FLM-10	25,40,63,80,100,125,160	77	493	Electric motor
FLM-10	200,224,250,315	88	493	Electric motor
FLT-10	3.15,8,10,16,25,40,63,80,100,125,160,200,250	77	493	transformer
FLT-10	315	88	493	transformer
FLC-10	8,10,12.5,16,20,25,31.5,35.5,40,45,45,50,56,63	77	493	Capacitor
FLC-10	71,75,80,90,100,112,125	88	493	Capacitor

· Ambient temperature: -25℃~+40℃

· Relative humidity: ≤95% (daily average); ≤90% (monthly average)

· Altitude: ≤2000m (MVC□-7); ≤1000m (MVC□-10, MVC□-15)

· Water vapor pressure: ≤2.2×10-3Pa (daily average); ≤1.8×10-3Pa (monthly average)

· The surrounding air should not be significantly polluted by corrosive or flammable gases, water vapor, etc.

· No frequent severe vibration

· During operation, the inclination angle between the installation plane and the horizontal plane is not more than 5°
