High voltage AC filter capacitor

In the power grid, electrical energy is supplied to users with sine wave voltage and current. However, if there are non-linear loads such as rectifiers, inverters, electric arc furnaces, etc., a large amount of high-order harmonic currents will be generated, which will cause distortion of the system voltage and current waveforms, resulting in harmonic pollution of the power system and causing damage to power equipment and electrical equipment. harm. Therefore, when the high-order harmonic current injected into the system exceeds the relevant standards, an AC filter capacitor and other components can be used to form a filter compensation device to absorb high-order harmonics and also serve as reactive power compensation.
High voltage AC filter capacitor


Note: Voltage grade selection comparison table (please contact our company for data not listed)

Voltage level (kV)

7.1

7.5

8

10.5

11

13

14

15

18

Corresponding selection number

071

075

080

105

110

130

140

150

180

· Low dielectric loss;

· The box shell has high explosion-proof specifications

· Insulating oil meets environmental protection requirements

· The capacitance value changes very little with temperature;

· Can withstand fault current below 10kA;

· Built-in discharge resistor, when cut off from the power supply, the remaining voltage on the capacitor can be  reduced from UN to less than 50V within 5 minutes ;


· Rated frequency: 50Hz or 60Hz;

· Average loss: no more than 0.2W/kvar;

· Full film dielectric: polypropylene film;

· Insulating oil: does not contain chlorinated biphenyls, is environmentally friendly and non-toxic;

· Allow long-term operation under 1.1 times rated voltage;

· Allow continuous operation under steady-state overcurrent of 1.3 times the rated current;

· The capacitance deviation does not exceed -3%~+3% of the rated value;

· Built-in discharge resistance, after power off, the remaining voltage on the capacitor can be  reduced from UN to below 50V within 5 minutes .

· Executive standard: IEC60871: 1997 "Shunt Capacitor for AC Power System with Nominal Voltage Above 1kV"

             IEC61642: 1997 "Application of Filters and Shunt Capacitors in Industrial AC Networks Affected by Harmonics"


· The altitude normally does not exceed 1000m

· Air temperature range: (-40~+50)℃;

· No corrosive gas and steam, conductivity or explosive dust; no violent vibration.


AC filter capacitor

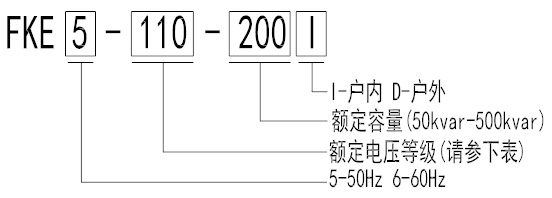

model

Rated voltage (kV)

Rated capacity (kvar)

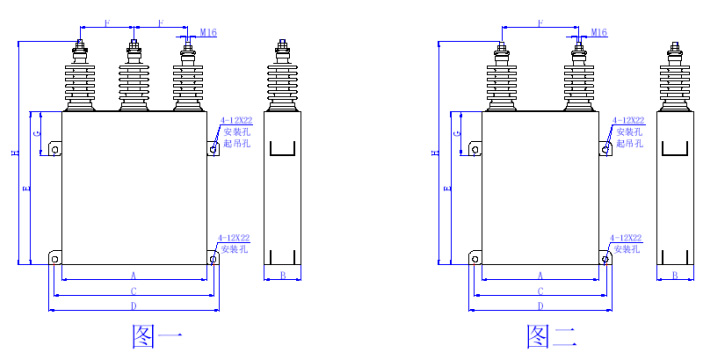

Dimensions and installation dimensions (mm)

Weight (kg)

Drawing number

A

B

C

D

E

F

G

H

FKE5-075-100D

7.5

100

380

140

420

450

370

250

140

642

31

Figure one

FKE5-080-100D

8

100

380

140

420

450

370

250

140

642

30

FKE5-110-100D

11

100

380

140

420

450

370

250

140

642

31

FKE5-140-100D

14

100

380

140

420

450

370

250

140

642

30

FKE5-080-150I

8

150

380

110

420

450

595

250

200

803

38

FKE5-100-150I

10

150

380

110

420

450

600

250

200

812

38

FKE5-110-200D

11

200

380

200

536

564

365

250

140

573

50

FKE5-071-200D

7.1

200

380

125

420

450

595

250

200

803

42

FKE5-080-200D

8

200

380

140

436

464

600

250

140

808

47

FKE5-105-200D

10.5

200

380

135

420

450

595

250

200

867

46

Figure one

FKE5-120-200D

12

200

380

150

436

464

600

250

200

872

51

FKE5-150-200D

15

200

380

150

436

464

600

250

200

872

51

FKE5-180-200D

18

200

380

150

436

464

600

250

200

872

51

FKE5-120-250D

12

250

380

166

420

450

595

250

140

867

54

FKE5-130-250D

13

250

380

166

420

450

595

250

140

867

54



Note: Any product is constantly improving, and subject to change without notice. For more detailed information and products with unlisted voltages, models and specifications, please contact the supplier.
