HZm series anti harmonic reactive power compensation module

Low voltage anti harmonic components are composed of high-quality capacitors and reactors, which are specially designed for reactive power compensation and filtering of distribution systems with harmonic sources.
HZm series anti harmonic reactive power compensation module


1. Using anti harmonic capacitor, its withstand voltage level is higher

2. The reactor with higher withstand voltage and insulation grade has low loss and higher reliability

3. Perfect matching of capacitor and reactor parameters

1. Rated voltage: 230V ~ 525V

2. Reactance rate: 7%, 14% (other specifications can be customized)

3. Rated capacity: 10kvar ~ 50kvar

4. Please refer to the product introduction for detailed parameters of capacitor and reactor

1. 7% reactance rate reactor compensation module is used to effectively suppress the 5th and above harmonics

2. 14% reactance rate reactor compensation module is used to effectively suppress the third and above harmonics

3. Ambient temperature: - 25 ℃~ + 55 ℃

4. Relative humidity: not more than 95%

5. Altitude: no more than 2000m (customized for special requirements)

6. No combustible gas, no corrosive gas, no strong vibration place

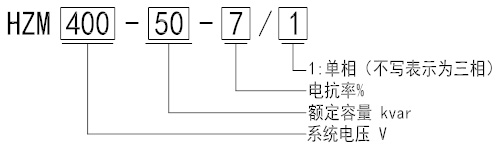

Three-phase anti-harmonic compensation component selection table (system voltage 400V, 7% reactance rate)

Model number

System voltage

Output capacity

Capacitor model

Reactor model

Number of capacitors and reactors

HZM400-10-7

400

10

CSLK2-480013

SE0.48-0.91/7

1:1

HZM400-15-7

400

15

CSLK2-480020

SE0.48-1.4/7

1:1

HZM400-20-7

400

20

CSLK2-480027

SE0.48-1.89/7

1:1

HZM400-25-7

400

25

CSLK2-480033

SE0.48-2.31/7

1:1

HZM400-30-7

400

30

CSLK2-480040

SE0.48-2.8/7

1:1

HZM400-40-7

400

40

CSLK2-480027

SE0.48-3.78/7

2:1

HZM400-50-7

400

50

CSLK2-480033

SE0.48-4.62/7

2:1



Three-phase anti-harmonic compensation component selection table (system voltage 400V, 14% reactance rate)

Model number

System voltage

Output capacity

Capacitor model

Reactor model

Number of capacitors and reactors

HZM400-10-14

400

10

CSLK2-525015

SE0.525-2.1/14

1:1

HZM400-15-14

400

15

CSLK2-525022

SE0.525-3.08/14

1:1

HZM400-20-14

400

20

CSLK2-525030

SE0.525-4.2/14

1:1

HZM400-25-14

400

25

CSLK2-525037

SE0.525-5.18/14

1:1

HZM400-30-14

400

30

CSLK2-525045

SE0.525-6.3/14

1:1

HZM400-40-14

400

40

CSLK2-525030

SE0.525-8.4/14

2:1

HZM400-50-14

400

50

CSLK2-525037

SE0.525-10.36/14

2:1

Please contact our company for the models not listed above.





Three-phase anti-harmonic compensation component selection table (system voltage 690V, 7% reactance rate)

Model number

System voltage

Output capacity

Capacitor model

Reactor model

Number of capacitors and reactors

HZM690-10-7

690

10

CSLK2-800013

SE0.8-0.91/7

1:1

HZM690-15-7

690

15

CSLK2-800020

SE0.8-1.4/7

1:1

HZM690-20-7

690

20

CSLK2-800025

SE0.8-1.75/7

1:1

HZM690-25-7

690

25

CSLK2-800033

SE0.8-2.31/7

1:1

HZM690-30-7

690

30

CSLK2-800038

SE0.8-2.66/7

1:1

HZM690-40-7

690

40

CSLK2-800025

SE0.8-3.5/7

2:1

HZM690-50-7

690

50

CSLK2-800033

SE0.8-4.62/7

2:1



Three-phase anti-harmonic compensation component selection table (system voltage 690V, 14% reactance rate)

Model number

System voltage

Output capacity

Capacitor model

Reactor model

Number of capacitors and reactors

HZM690-10-14

690

10

CSLK2-900015

SE0.9-2.1/14

1:1

HZM690-15-14

690

15

CSLK2-900022

SE0.9-3.08/14

1:1

HZM690-20-14

690

20

CSLK2-900030

SE0.9-4.2/14

1:1

HZM690-25-14

690

25

CSLK2-900037

SE0.9-5.18/14

1:1

HZM690-30-14

690

30

CSLK2-900045

SE0.9-6.3/14

1:1

HZM690-40-14

690

40

CSLK2-900030

SE0.9-8.4/14

2:1

HZM690-50-14

690

50

CSLK2-900037

SE0.9-10.36/14

2:1





Single-phase anti-harmonic compensation component selection table (system voltage 230V, 7% reactance rate)

Model number

System voltage

Output capacity

Capacitor model

Reactor model

Number of capacitors and reactors

HZM230-7-7-1

230

7

CSLK2-280010

SE0.28-0.7/7

1:1

HZM230-10-7-1

230

10

CSLK2-280013

SE0.28-0.91/7

1:1

HZM230-15-7-1

230

15

CSLK2-280020

SE0.28-1.4/7

1:1

HZM230-20-7-1

230

20

CSLK2-280027

SE0.28-1.89/7

1:1



Single-phase anti-harmonic compensation component selection table (system voltage 230V, 14% reactance rate)

Model number

System voltage

Output capacity

Capacitor model

Reactor model

Number of capacitors and reactors

HZM230-7-14-1

230

7

CSLK2-300011

SE0.3-0.77/7

1:1

HZM230-10-14-1

230

10

CSLK2-300015

SE0.3-1.05/7

1:1

HZM230-15-14-1

230

15

CSLK2-300022

SE0.3-1.54/7

1:1

HZM230-20-14-1

230

20

CSLK2-300030

SE0.3-2.1/7

1:1

Please contact our company for the models not listed above.



Single-phase anti-harmonic compensation component selection table (system voltage 400V, 7% reactance rate)

Model number

System voltage

Output capacity

Capacitor model

Reactor model

Number of capacitors and reactors

HZM400-7-7-1

400

7

CSLK2-460009

SE0.28-0.63/7

1:1

HZM400-10-7-1

400

10

CSLK2-460013

SE0.28-0.91/7

1:1

HZM400-15-7-1

400

15

CSLK2-460018

SE0.28-1.26/7

1:1

HZM400-20-7-1

400

20

CSLK2-460025

SE0.28-1.75/7

1:1





Single-phase anti-harmonic compensation component selection table (system voltage 400V, 14% reactance rate)

Model number

System voltage

Output capacity

Capacitor model

Reactor model

Number of capacitors and reactors

HZM400-7-14-1

400

7

CSLK2-520011

SE0.52-0.77/7

1:1

HZM400-10-14-1

400

10

CSLK2-520015

SE0.52-1.05/7

1:1

HZM400-15-14-1

400

15

CSLK2-520022

SE0.52-1.54/7

1:1

HZM400-20-14-1

400

20

CSLK2-520030

SE0.52-2.1/7

1:1
