HZ-C-XXX-XX-1/3

               XXX---------------Rated voltage 280/480/525v

                         XX-----------------Capacity 5-50kvar

                                1/3------------------single-phase/three-phase

Advanced technology and materials

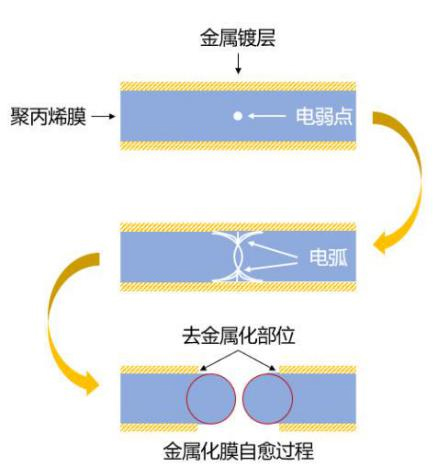

Dielectric self-healing function

The capacitor uses polypropylene film as the medium, and a layer of metal is vapor-deposited on the surface as a conductive electrode; when an excessively high voltage is applied, the electric weak point of the polypropylene film is broken down, the resistance of the breakdown point is significantly reduced, and the current density flowing through increases sharply Large, make the metalized coating produce high heat, the metal conductor around the breakdown point will quickly evaporate and dissipate, forming a blank area of the metal coating, and the breakdown point will automatically restore insulation.

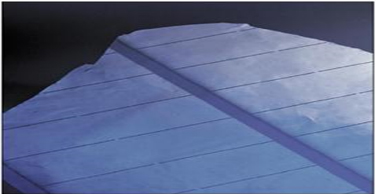

 Mesh, metal polypropylene film

Adopt advanced electron beam heating evaporation technology, high vacuum treatment, excellent adhesion of the metal layer; unique pattern design, reliable operation of the connection current gate, and extremely high safety factor; excellent square resistance design and edge gold spraying process to control self-control Heal energy and avoid self-healing failure.

 Special epoxy filling

Flame retardant, low sealing; strong heat insulation and long service life
